MegaChip Two - 2MB Chipmem expansion for Amiga 500/1500/2000 by Power Computing (1994)


PLEASE READ THIS!
I got this adapter second hand and have doubts if the Agnus 8375 390544-01 in this board is the correct one!
(I would expect a 8372/8372A compatible Agnus)
If adapter is installed in a PAL A500 Rev6A, booting the Amiga shows GREEN screen > indicating a memory problem.


If you know the answer, please send an email to info at pmsoft.nl!

From an advert in magazine:
Power Mega Chip Two by Power Computing

Upgrade your Amiga to 2 Mb of chip RAM.

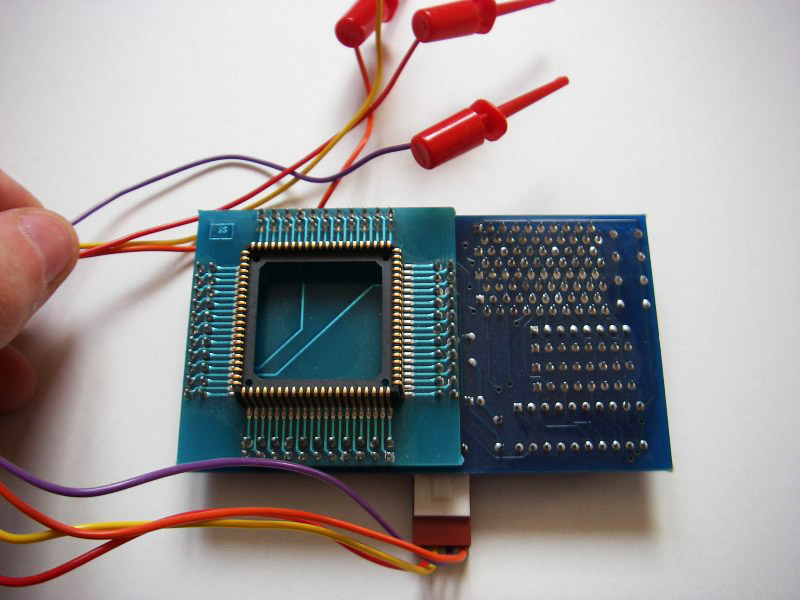

MegaChip TWO back

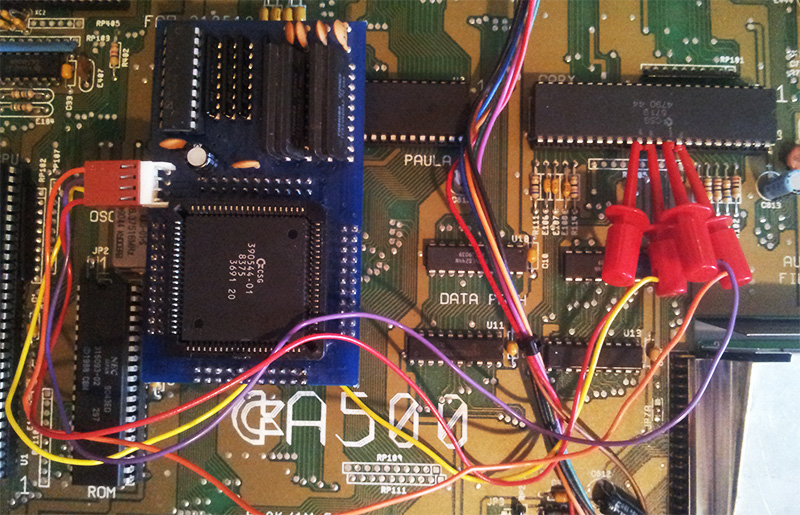

MegaChip TWO installed A500
(Rev6a)

Manual update:

The colour coding of the fly leads to be attached to the gary chip have been changed from that stated in the User Manual to the following show below, this is valid for pages 4,7 and 8.
RED > pin 35 Gary Chip
YELLOW > pin 36 Gary Chip
PURPLE > pin 38 Gary Chip
ORANGE > pin 39 Gary Chip

gary pin out amiga

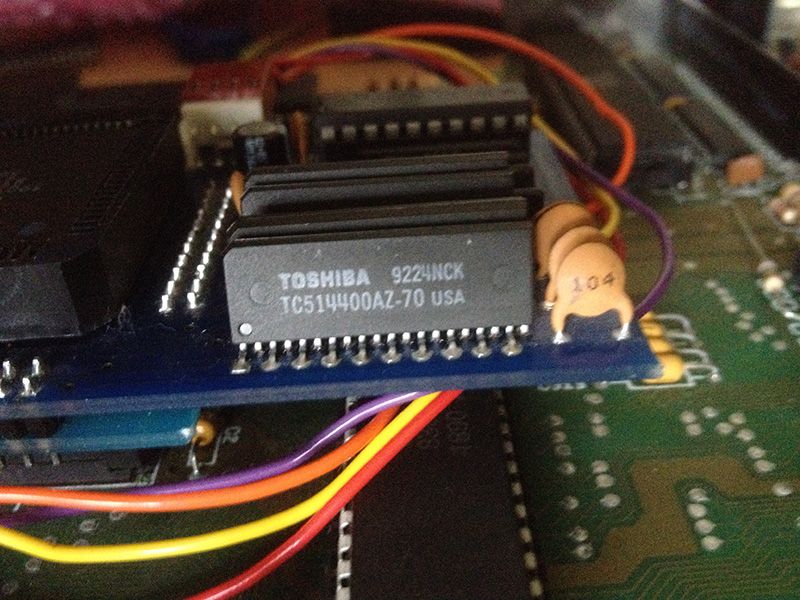

MegaChip-TWO-memory

Computer World price: GBP 144.99
Advert 1994:
Amigashopper Mega Chip two

MegaChip TWO manual
Manual will be scanned in the year 2016...

To be continued...
